Summary

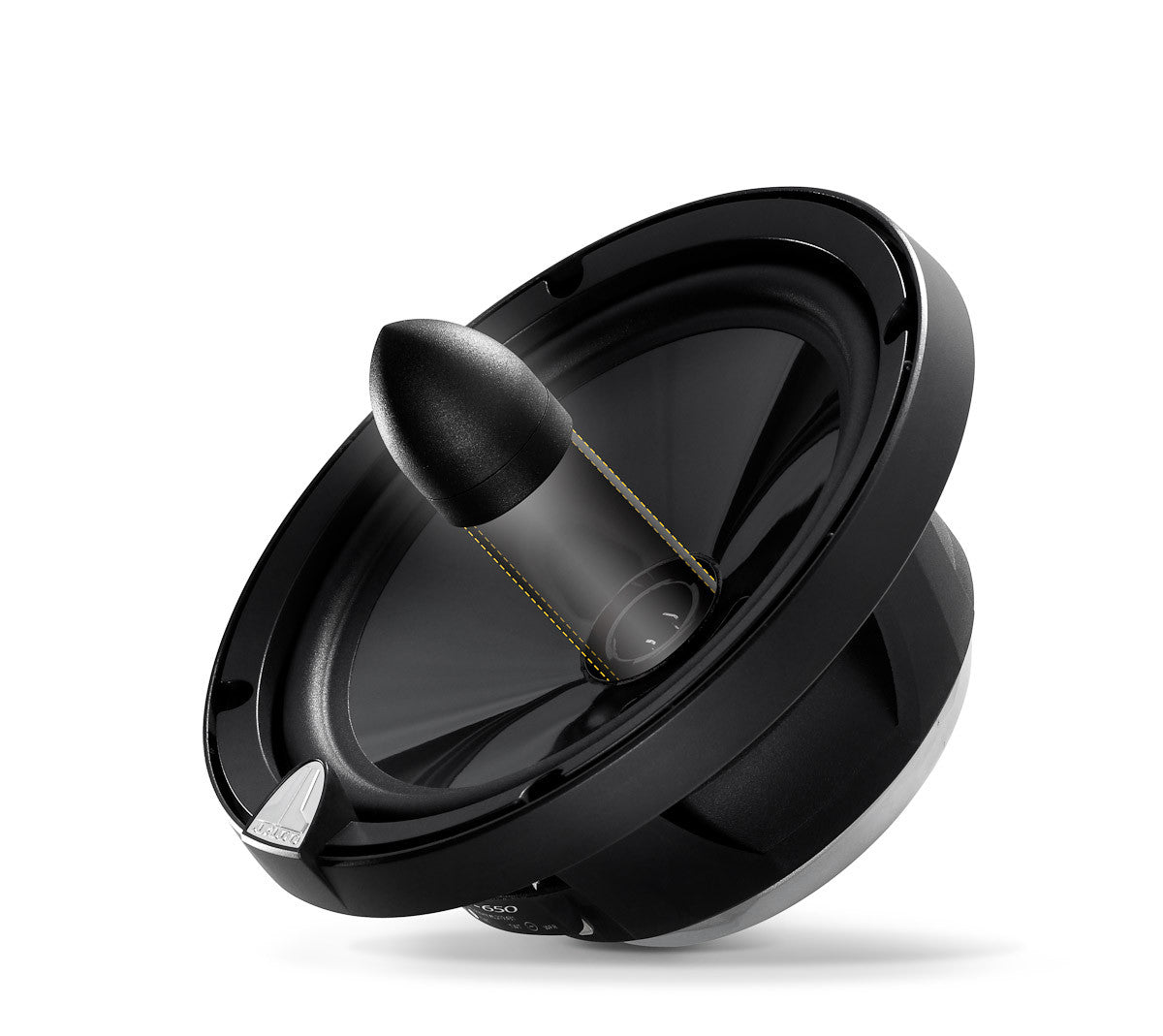

The C3-650cw is a 6.5-inch (165 mm) component woofer capable of accurate reproduction between 48 Hz and 5 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

A grille is included, consisting of a black grille tray and a black steel mesh grille.

Sonic character: Clean and Powerful

Sold individually.

Specifications

General Specifications

• Continuous Power Handling (RMS) 75 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 25 - 150 W
• System Efficiency 90.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 48 Hz - 5 KHz ± 3 dB

Woofer Physical Specifications

• Frame Outer Diameter (A) 6.50 in / 165 mm
• Grille Tray Outer Diameter (B) 6.74 in / 171 mm
• Rear Cover Outer Diameter (C) 4.08 in / 104 mm
• Frontal Coaxial Tweeter Protrusion* (D) 0.75 in / 19 mm
• Frontal Grille Protrusion** (E) 1.03 in / 26 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.55 in / 65 mm
