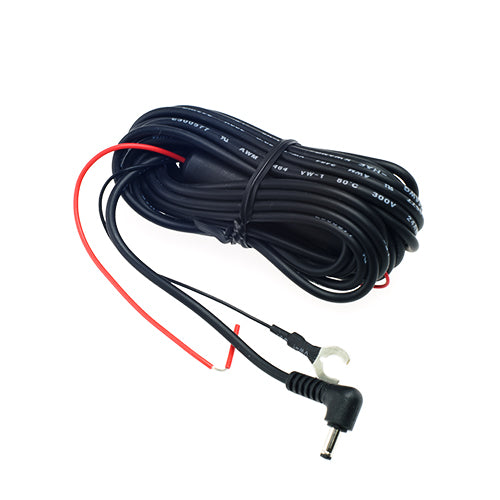

Hardwiring cable to connect your dashcam to your vehicle’s battery via the fuse panel.
X Series dashcams feature built-in timer and voltage monitoring for Parking Mode.
With other models, for protection of your vehicle’s battery during Parking Mode, consider using a Power Magic kit or battery.

CH-3P1: Compatible with X Series models:

• DR900X Series (1CH, 2CH, 2CH IR)
• DR750X Series (1CH, 2CH, 2CH IR, 2CH TRUCK)
• DR590X Series (1CH, 2CH, 2CH IR)

CH-2P: Compatible with:

• DR900S Series (1CH, 2CH, 2CH IR)
• DR750S Series (1CH, 2CH, 2CH IR, 2CH TRUCK)
• DR590W Series (1CH, 2CH, 2CH IR)
• DR590 Series (1CH, 2CH, 2CH IR)
• DR650GW and DR650S Series (1CH, 2CH, 2CH IR, 2CH TRUCK)
• DR450-1CH, DR430-2CH, DR470-2CH, DR430-2CH IR, DR470-2CH IR, DR3500-FHD

CH-3PA: Compatible with DR490L-2CH, DR750LW-2CH.

DC plug

• CH-3P1: (Ø3.5 x Ø1.1)
• CH-2P:(Ø3.5 x Ø1.35)
• CH-3PA: (Ø3.5 x Ø1.1)

Input

• CH-3P1: Black : GND / Red : ACC / Yellow: BATT
• CH-2P: Black : GND / Red : ACC
• CH-3PA:Black: GND / Yellow: ACC / Red: BATT

Length

• CH-3P1: 4.5m / 14.7 ft
• CH-2P: 4.5m / 14.7 ft
• CH-3PA: 3.0m / 9.8 ft

Weight

• CH-3P1: 0.2 lb / 91 g
• CH-2P: 0.156 lb / 71 g
• CH-3PA: 0.159 lb / 72 g

Warranty

6 months manufacturer’s warranty
