Summary
Overview
KENWOOD eXcelon products are specially developed to provide the ideal listening experience.
Maximum precision is achieved with top-end components for true musical indulgence. Receivers feature innovative technologies such as advanced smartphone connectivity and driver safety options.
We stand firmly behind the eXcelon products with a 2 Year Warranty.
Features

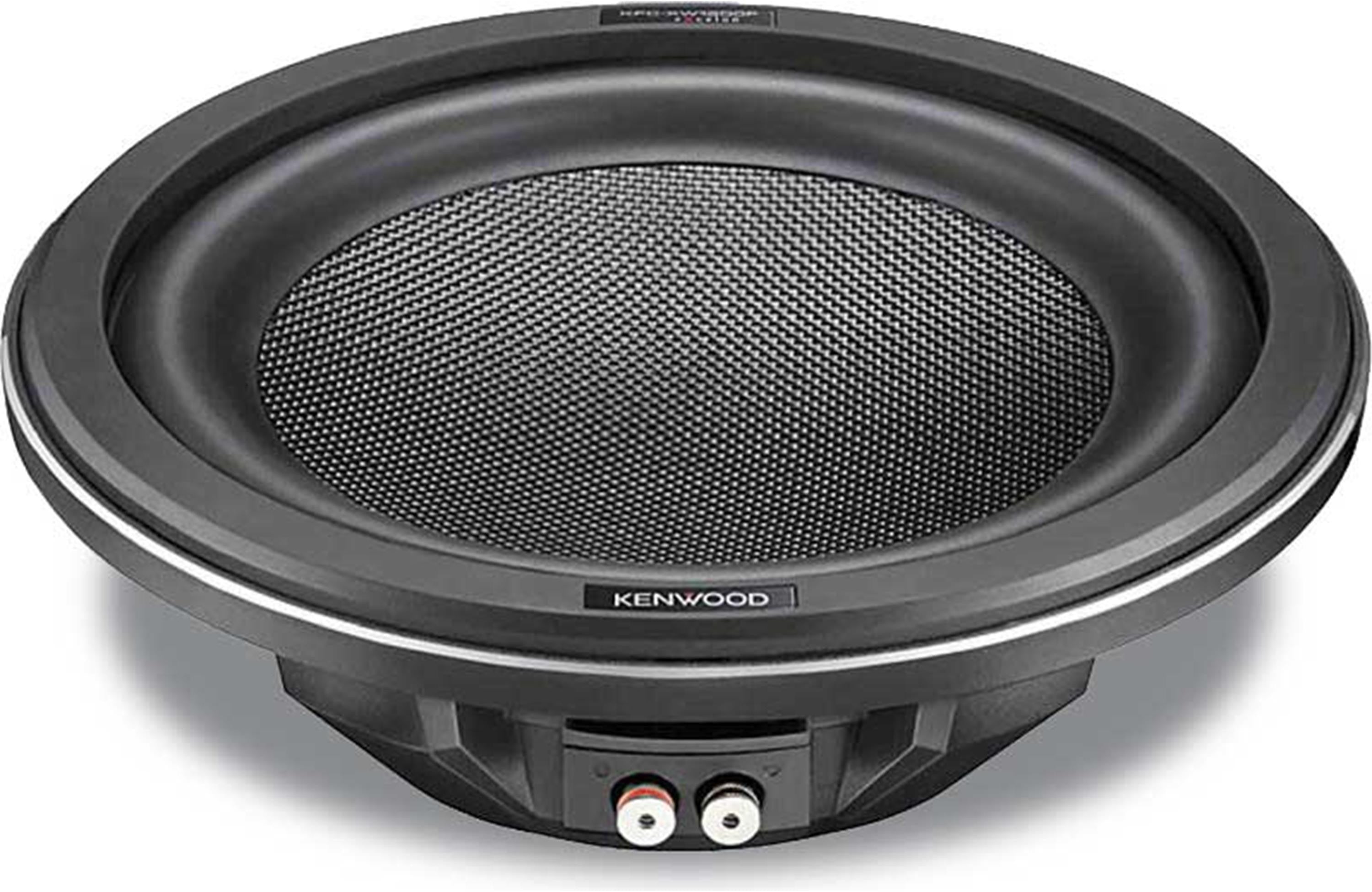

Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.
Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.
Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1".
Enclosure Compatibility
Sealed BoxVolume: The sealed box size recommended by Kenwood is 0.6 cu/ft.
Vented Box Volume: The vented box size recommended by Kenwood range is 0.6 cu/ft. One 3" diameter x 11" long port should be used with a 0.6 cu/ft enclosure.
| 10-inch | |
| 4 ohms | |
| Carbon-glass fiber | |
| Butyl rubber | |
| 0.6 | |
| 0.6 | |
| 3 | |
| 11 | |
| No | |
| Dual Voice Coil | No |
| Sensitivity | 90 dB at 1 watt |
| Frequency Response | 35 - 800 Hz |
| RMS Power Range (Watts) | 50-250 |
| Peak Power Handling (Watts) | 1000 |
| Top Mount Depth (inches) | 3 3/8 |
| Bottom Mount Depth (inches) | 3 15/16 |
| Cutout Diameter or Length (inches) | 9 1/8 |
| Vas (liters) | 21.05 |
| Fs (Hz) | 38.6 |
| Qts | 0.72 |
| Xmax (millimeters) | 7.5 |
